Descripción

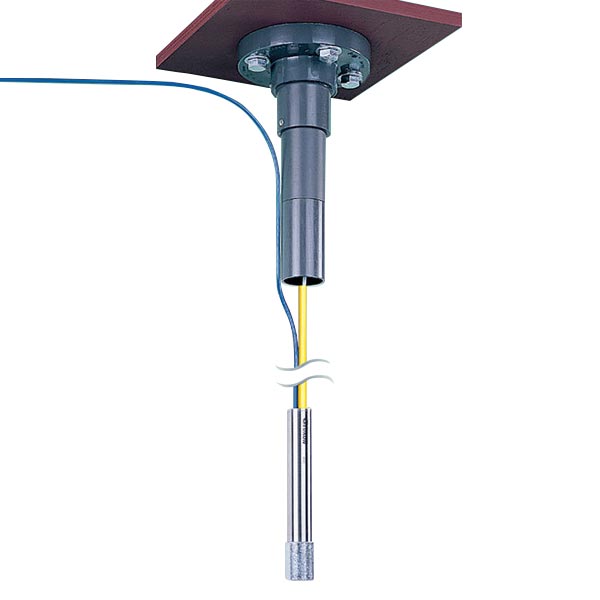

The Model 4600 Settlement System is designed for the remote measurement of surface or subsurface settlement in fills, surcharges, dams, embankments, etc. A borehole is drilled which allows a pressure transducer to be anchored to solid ground below the area of settlement. A fluid filled tube extends upward connecting the transducer to a reservoir which is located in the moving strata or fill. The measurement of fluid pressure indicates the elevation difference between the sensor and the reservoir. This design eliminates the need for long liquid filled tubes.
The Model 4600M is a special version of the Model 4600 capable of measuring subsurface zone settlement (please contact GEOKON for details).
Specifications
- Standard Ranges¹: 7, 17, 35 m
- Resolution: 0.025% F.S.
- Sensor Accuracy²: ±0.1% F.S.
- Temperature Range: −20°C to +80°C
- Length × Diameter: 305 × 60 mm (reservoir), 191 × 35 mm (sensor)
¹Other ranges available on request. ²Laboratory accuracy. Total system accuracy is subject to site-specific variables.
