Lectura de PC de campo (VW) – GK-405 VW Readout
La lectura de cuerda vibrante modelo GK-405 está diseñada para usarse con todos los sensores de cuerda vibrante GEOKON. Consta de una unidad de lectura alimentada por batería, que se comunica a través de la tecnología inalámbrica Bluetooth® con el modelo fpc-2 field PC que ejecuta la aplicación GK-405. El modelo GK-405 también puede leer los termistores incluidos con la […]
Celdas de asentamiento
Celdas de asentamiento: El mejor sensor para controlar el asentamiento y el levantamiento en los suelos. El sistema usa un transductor de presión conectado a una placa de asentamiento ubicada en el suelo de sedimentación. El sensor está conectado, a través de dos tubos llenos de fluido que se extienden lateralmente, a un depósito ubicado […]
Carcasa de inclinómetro
La carcasa del inclinómetro ABS Glue-Snap modelo 6400 se utiliza junto con una sonda de inclinómetro o un sistema de inclinómetro en el lugar para monitorear la estabilidad de terraplenes, pendientes, cimientos y muros de excavación, pilotes, etc. y fácil montaje. Especificaciones OD de la carcasa 70 mm (6400-2) / 85 mm (6400-3) Identificación de la […]
Extensometro magnetico
El Extensómetro Magnético Modelo 1900 está diseñado para medir el asentamiento o levantamiento de terreno blando bajo la influencia de carga o descarga debido a la construcción de terraplenes, rellenos, edificios, cimientos y estructuras. Se baja una sonda dentro de un tubo guía telescópico para detectar y medir la posición de los anclajes magnéticos ubicados alrededor del […]

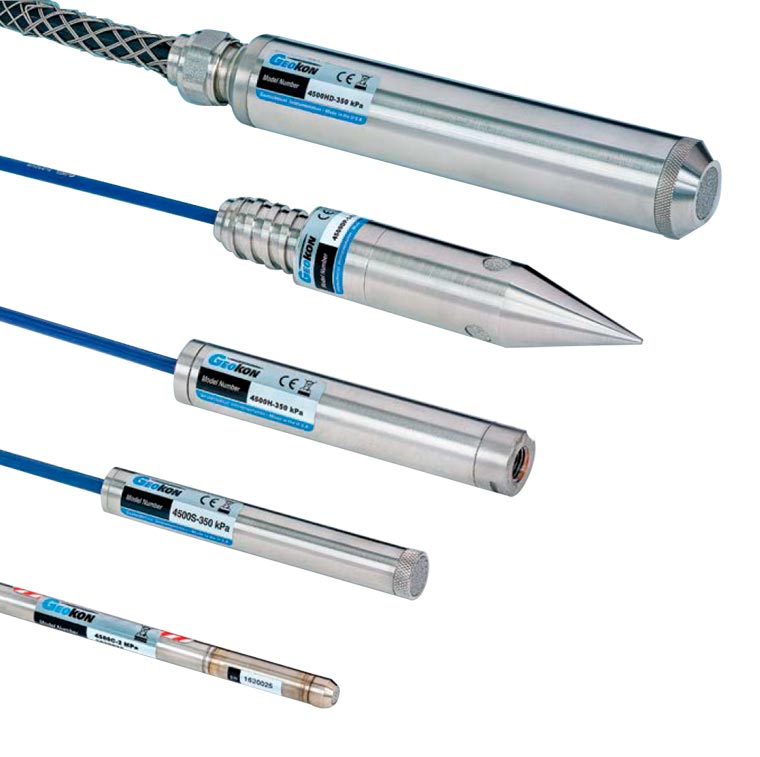

Piezómetros y transductores de presión
Operationg Principle The transducer uses a pressure sensitive diaphragm with a vibrating wire element attached to it. The diaphragm is welded to a capsule which is evacuated and hermetically sealed. Fluid pressures acting upon the outer face of the diaphragm cause deflections of the diaphragm and changes in tension and frequency of the vibrating wire. […]
VW2106 Vibrating Wire Readout
The portable VW2106 Vibrating Wire Readout reads, displays, and logs both vibrating wire sensors and thermistors. Vibrating wire load cells can be read without any additional accessories. Unprecedented accuracy, flexible memory options and ease of use make the VW2106 invaluable for projects requiring vibrating wire sensor monitoring. Maximum download time is only 15 seconds. APPLICATIONSReads, […]
Single-Channel Datalogger (VW) LC-2 Series Model 8002-1(A)
The Model 8002-1 (LC-2) and Model 8002-1A (LC-2A) are stand-alone, single-channel dataloggers, designed to read both the vibrating wire element and the integral thermistor of any GEOKON vibrating wire sensor. The LC-2 offers an internal hard wired transducer connection and the LC-2A provides an optional 10-pin transducer connector for rapid sensor connection. The dataloggers are […]
Glue-Snap ABS Inclinometer Casing Model 6400
Model 6400 Glue-Snap ABS Inclinometer Casing is used in conjunction with an inclinometer probe or in-place inclinometer system to monitor the stability of embankments, slopes, foundation and excavation walls, piles, etc. The Model 6400 is flush-coupled allowing for quick and easy assembly. Specifications Maximum O.D.¹: 70 mm Wall Thickness: 5.5 mm Length: 1.5 or 3 […]
Magnetic Extensometers Model 1900
The Model 1900 Magnetic Extensometer is designed to measure settlement or heave of soft ground under the influence of loading or unloading due to the construction of embankments, fills, buildings, foundations, and structures. A probe is lowered inside a telescoping guide tube to detect and measure the position of magnetic anchors located around the guide […]
Tape Extensometers Model 1610
The Model 1610 Tape Extensometer is designed to measure small changes in the distance between opposite walls or between the roof and floor of excavations, tunnels, or mine openings. It can also be used to monitor deformation in structures and supports and to measure movements of unstable slopes. Readout is provided electronically via a front […]
Digital Inclinometer Model GK-604D
The Model GK-604D Digital Inclinometer System is delivered in its entirety and includes a Model 6100D Digital Inclinometer Probe, a reel-mounted cable and a Field PC. The Model 6100D contains electronics to convert the analog voltage into a digital signal, which is transmitted by the control cable to the cable reel containing the Interface, which […]
Load Cells (VW) Model 4900
The Model 4900 Vibrating Wire Load Cell consists of a cylinder of high-strength steel with 3, 4 or 6 vibrating wire strain gages located around the circumference of the cell. Loads applied to the cell are measured by the vibrating wire strain gages. The effects of uneven and eccentric loading are minimized by averaging the […]
